Kappa

RR Lyrae RSP animations for following pressure-volume work, gas heating, ionization structure, radius, temperature, luminosity, and radial velocity through pulsation phase.

Generated 2026-06-20T04:28:22+00:00. Trusted GIFs: 1/10. Seam-verified: 4/10.

Analysis Completion

in progress

1/10 final-ready 7 fixed-cell Fourier 1 trusted animations 1 strict convergence

Remaining requirements for unfinished models:

JSON CSV

Convergence Diagnostics

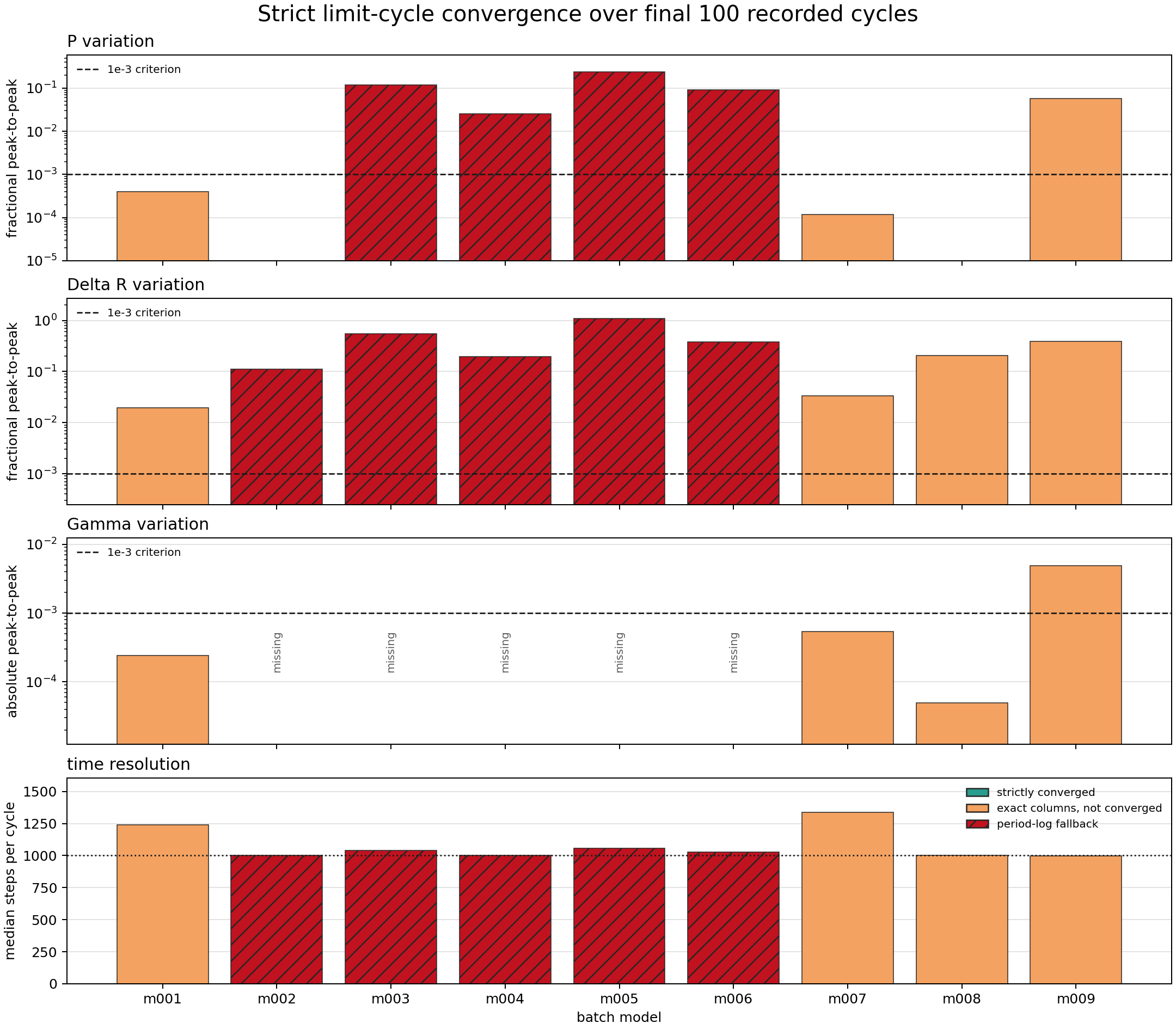

Strict limit-cycle convergence summary
Limit-Cycle Convergence

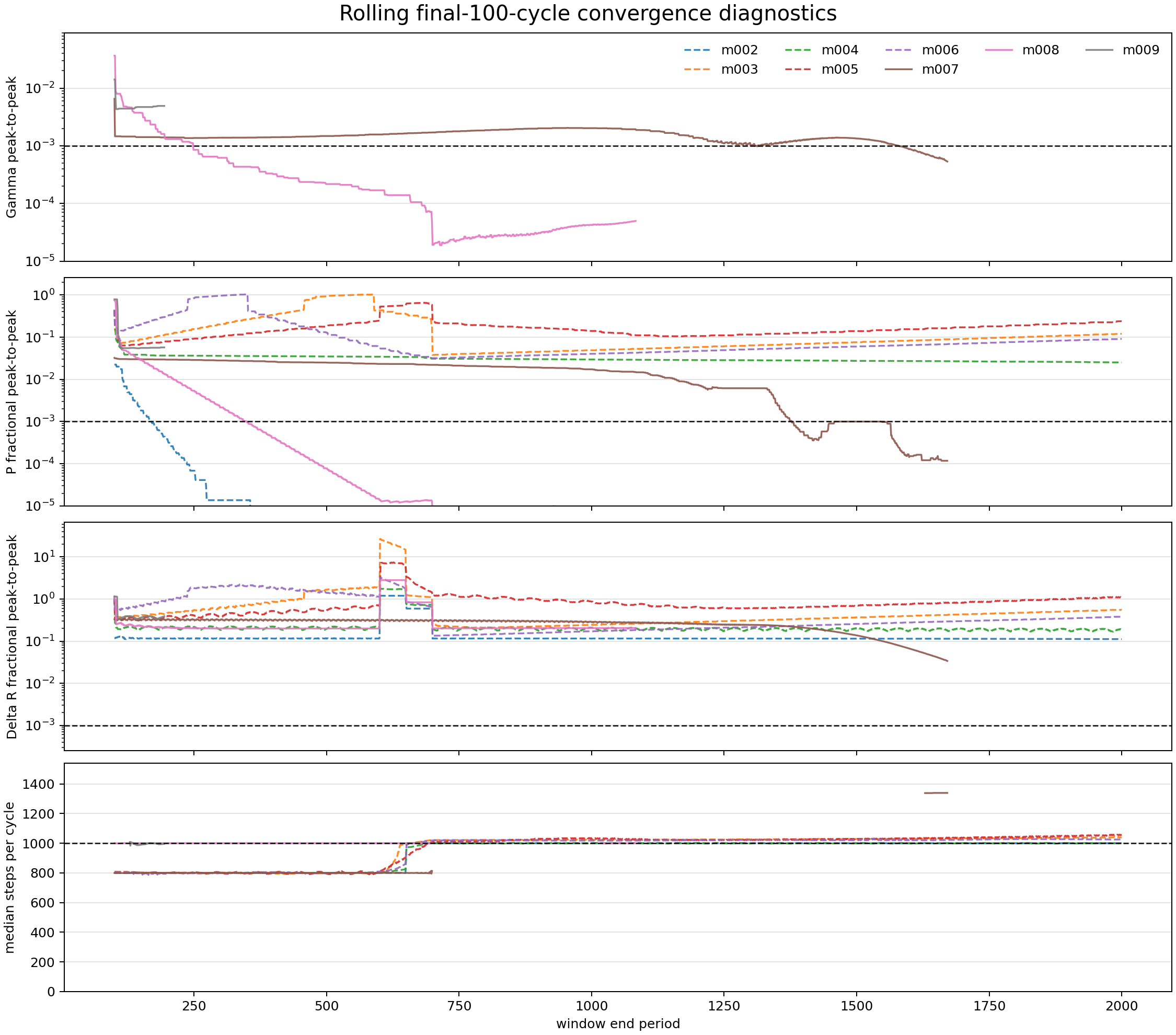

Rolling final-100-cycle convergence trends
Rolling Trends

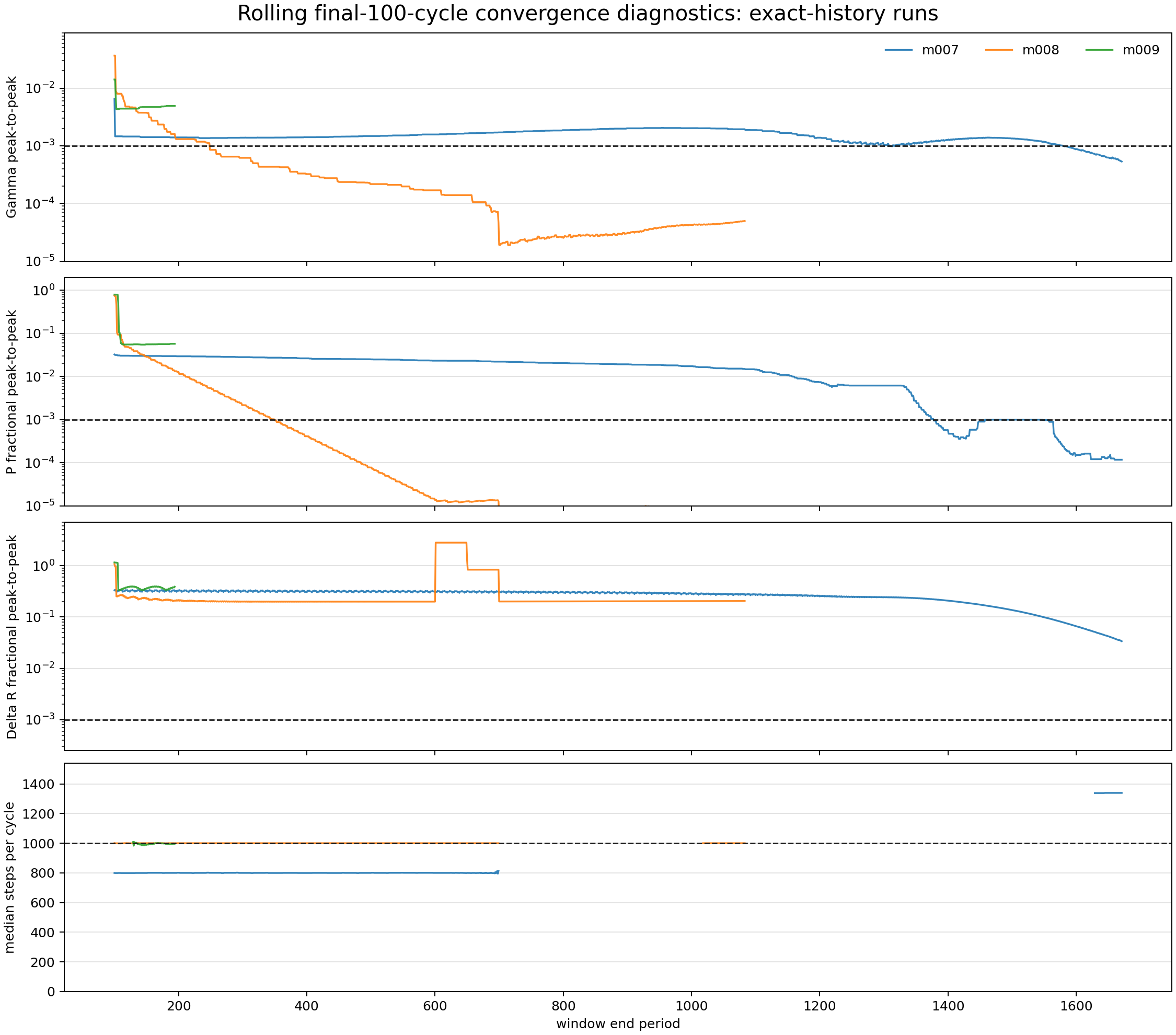

Rolling final-100-cycle convergence trends for exact-history runs
Exact-History Trends

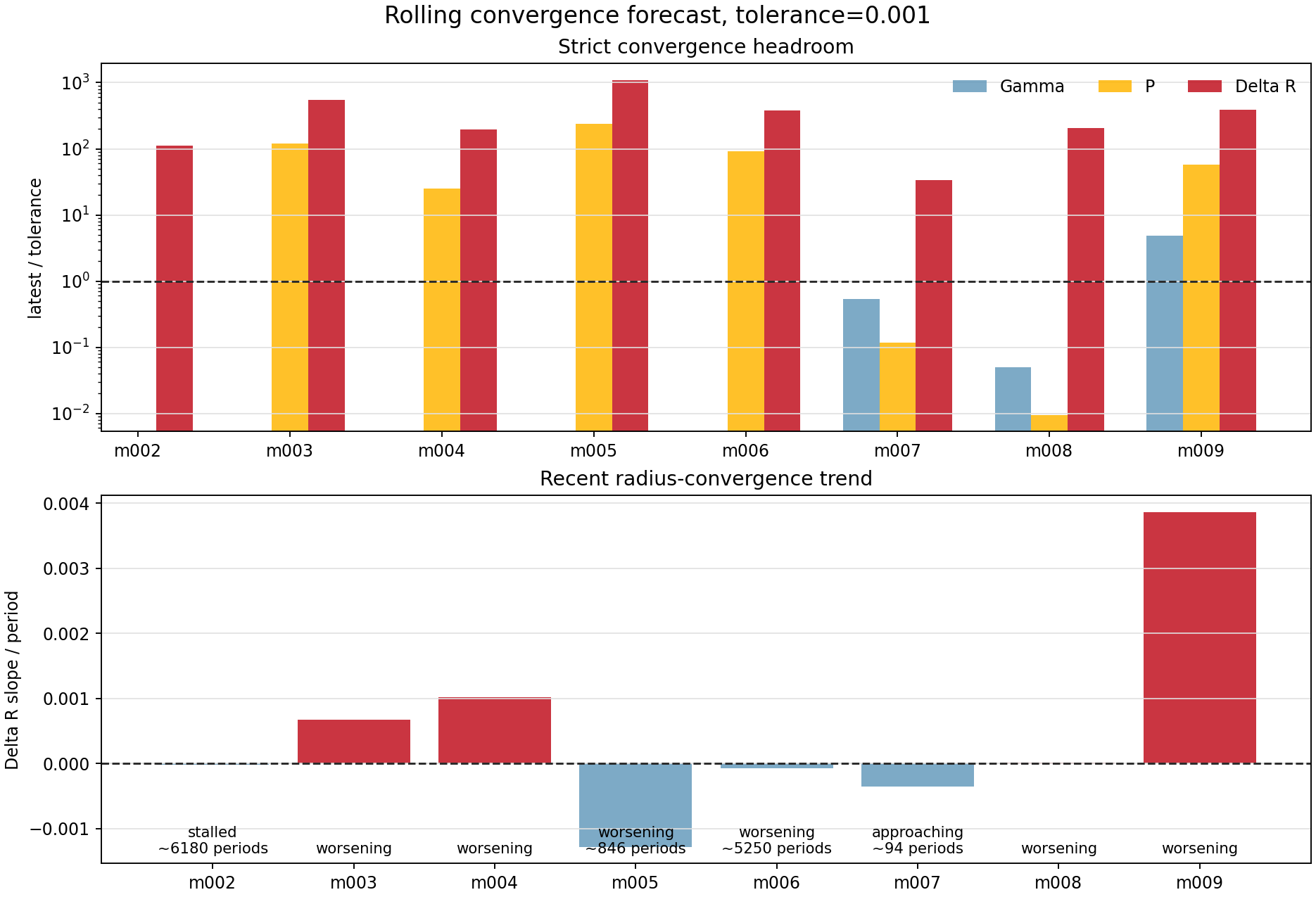

Rolling convergence forecast
Convergence Forecast

Active Amplitude Growth

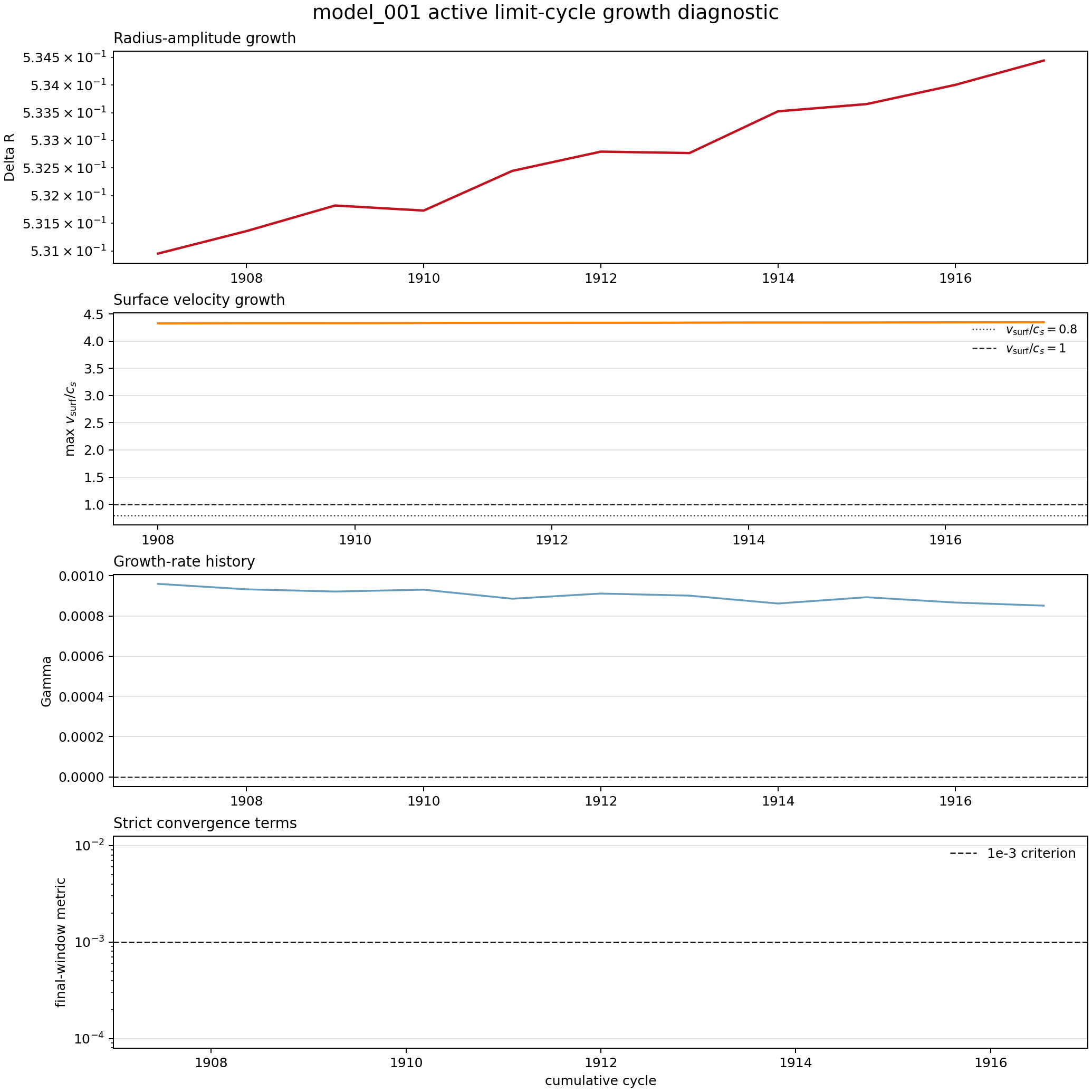

model 001 active amplitude growth diagnostic
model 001 active amplitude growth JSON

DeltaR window 38x criterion | amplitude doubles in 1856 cycles | max vsurf/cs 4.5 | vsurf/cs=0.8 in 0 cycles

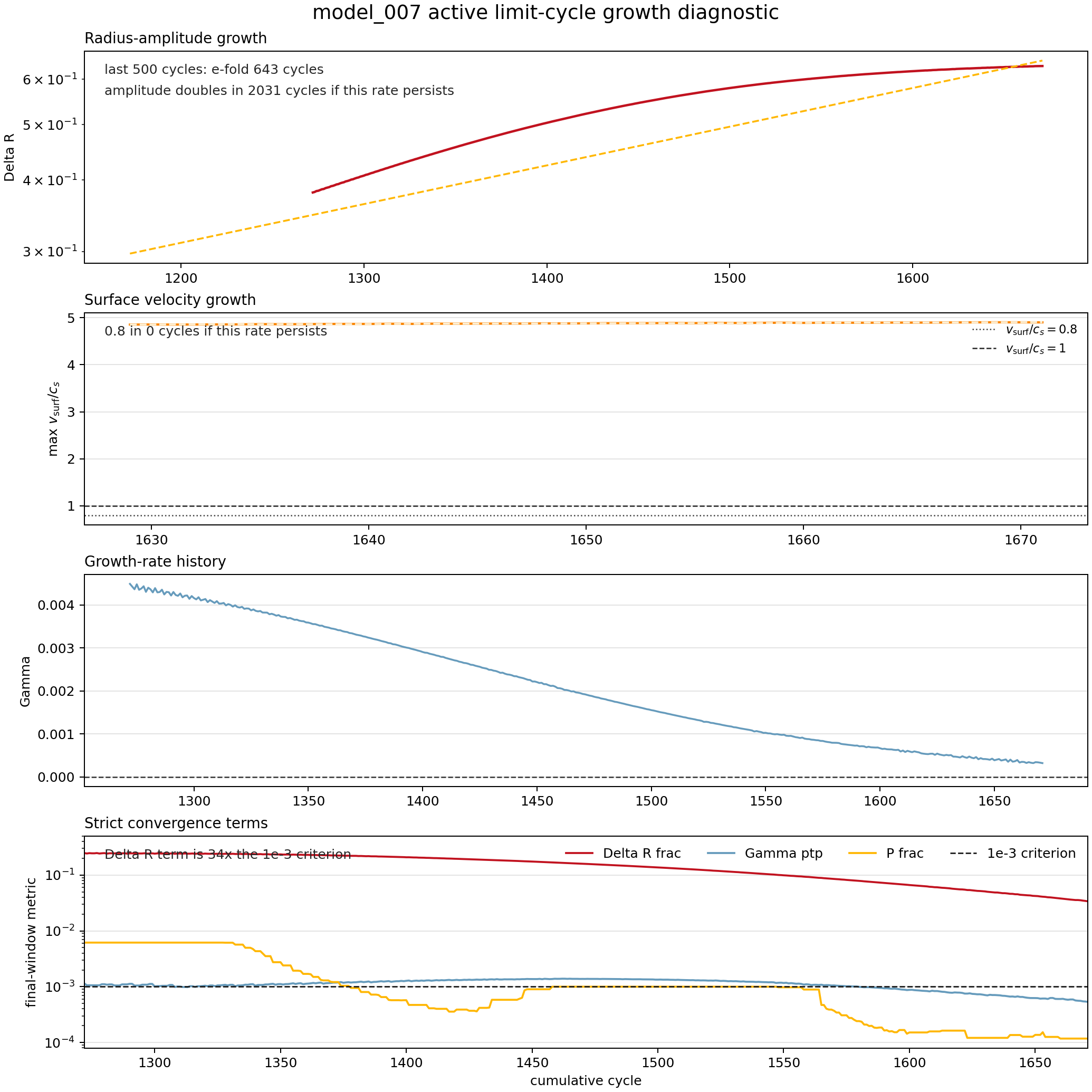

model 007 active amplitude growth diagnostic
model 007 active amplitude growth JSON

DeltaR window 15.9x criterion | amplitude doubles in 4500 cycles | max vsurf/cs 4.96 | vsurf/cs=0.8 in 0 cycles

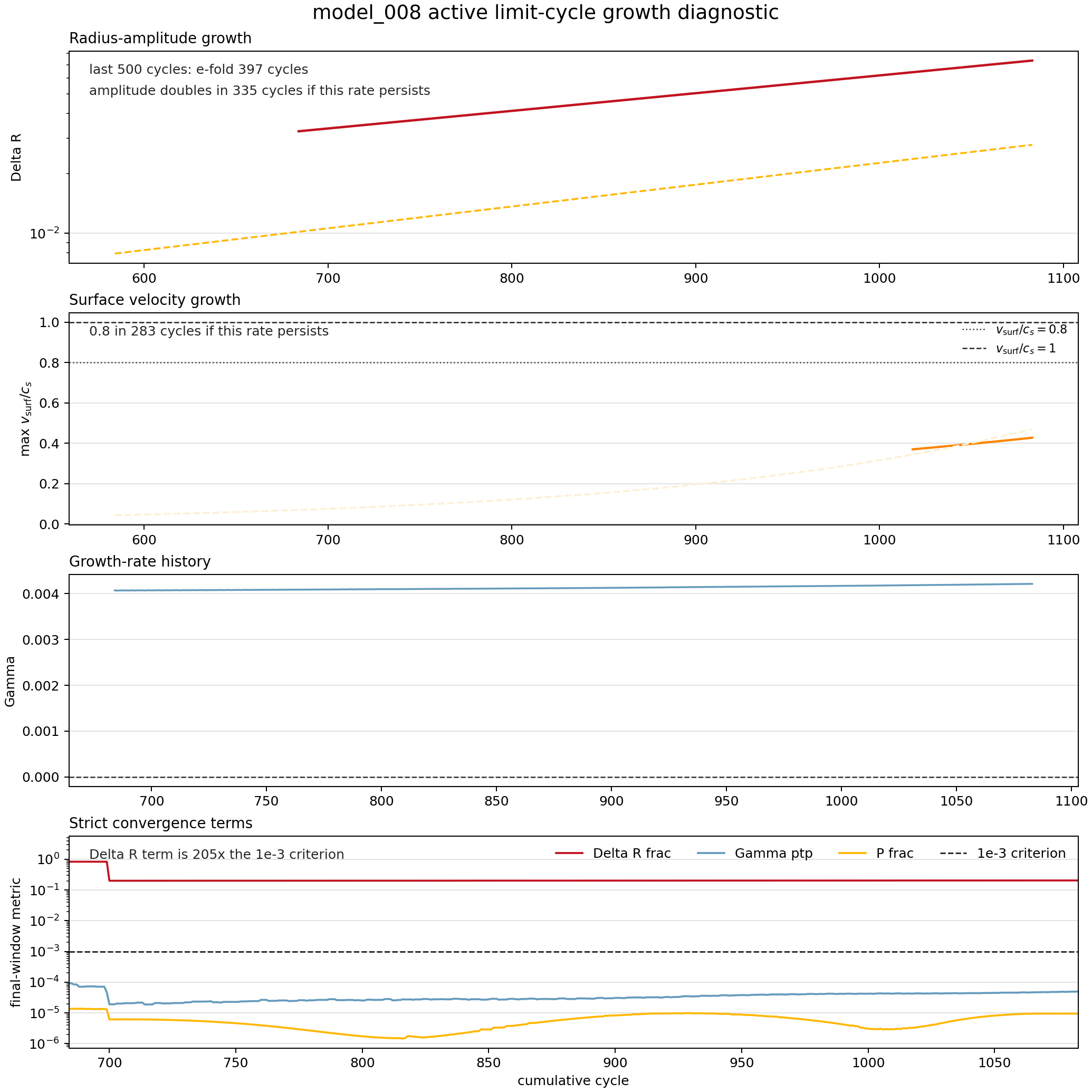

model 008 active amplitude growth diagnostic
model 008 active amplitude growth JSON

DeltaR window 207x criterion | amplitude doubles in 332 cycles | max vsurf/cs 0.558 | vsurf/cs=0.8 in 157 cycles

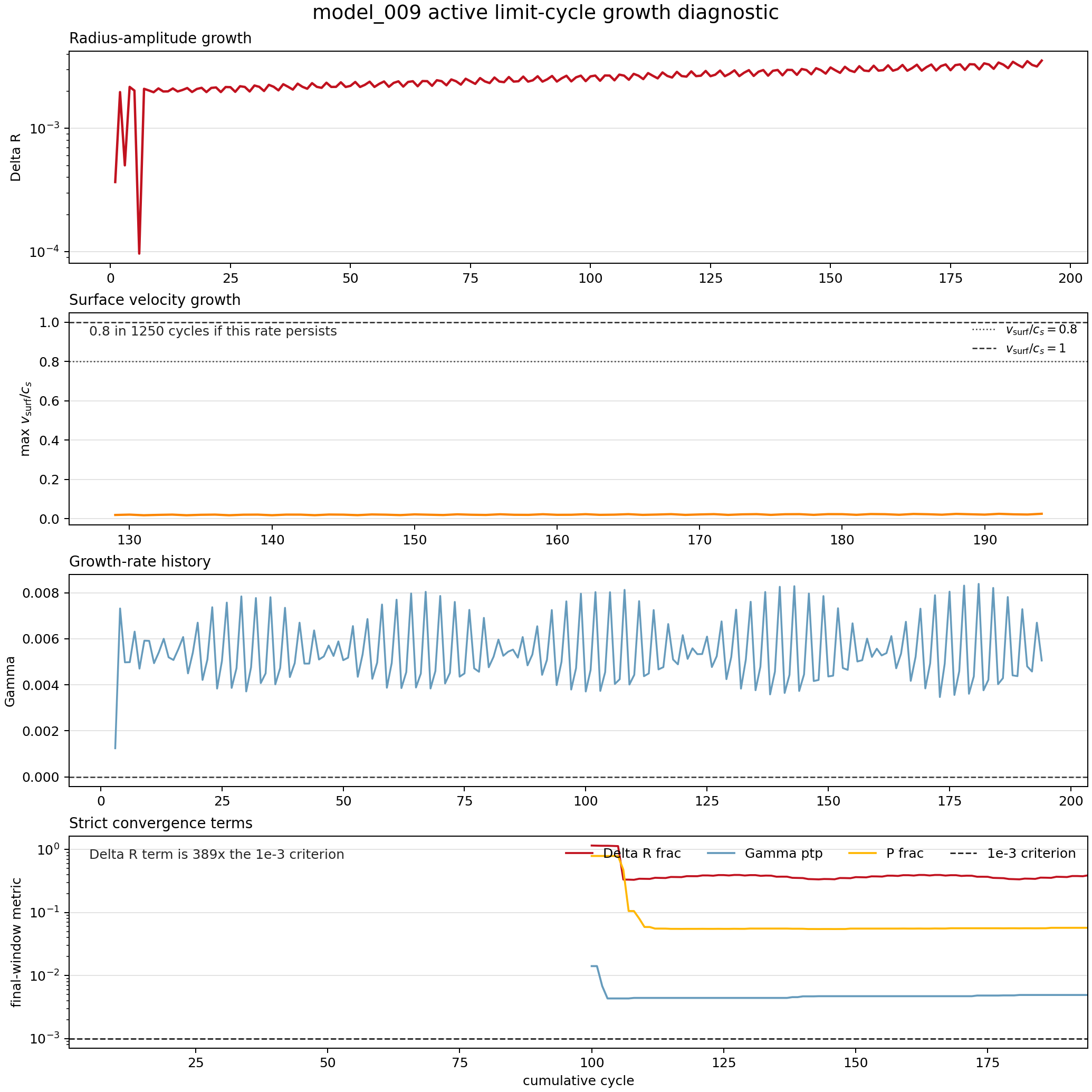

model 009 active amplitude growth diagnostic
model 009 active amplitude growth JSON

DeltaR window 361x criterion | amplitude doubles in 256 cycles | max vsurf/cs 0.0349 | vsurf/cs=0.8 in 1160 cycles

model_000

model_000_combined_14507_full_pressure_minus_eq

verified

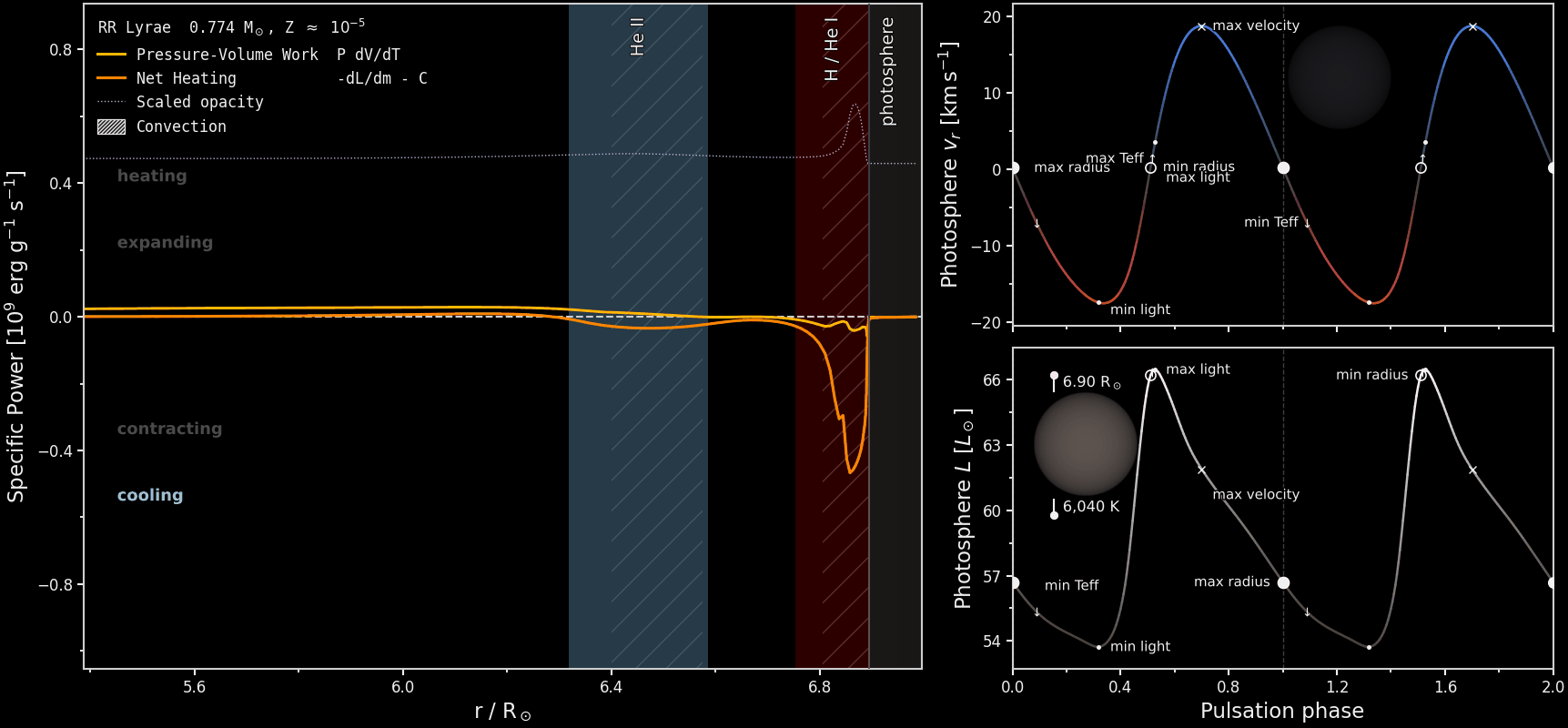

model_000 animation
Fixed-cell Fourier depth diagnostic

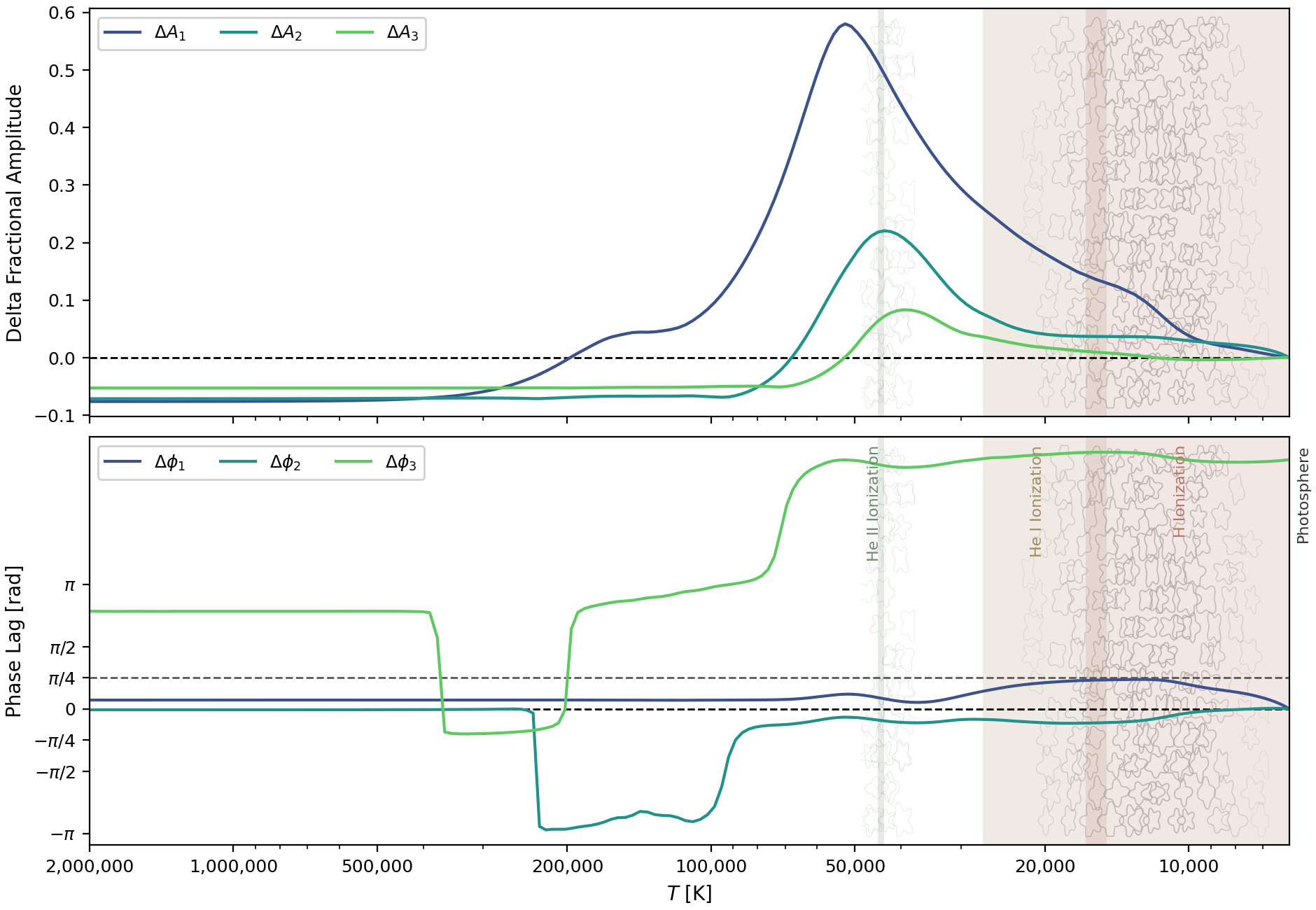

model_000 fixed-cell Fourier depth diagnostic
StellarM0.7737 M_sunTeff6332.6 KL58.67 L_sunX0.7238Z2.091e-05
Convectionalpha_MLT2.191alpha_m0.3216

3184 profiles | 17.2 MB GIF

GIF PNG summary verify lightcurve Fourier CSV Fourier summary

model_001

model_001_M0p5602_Z0p003592_T6824

running: continue_saturation

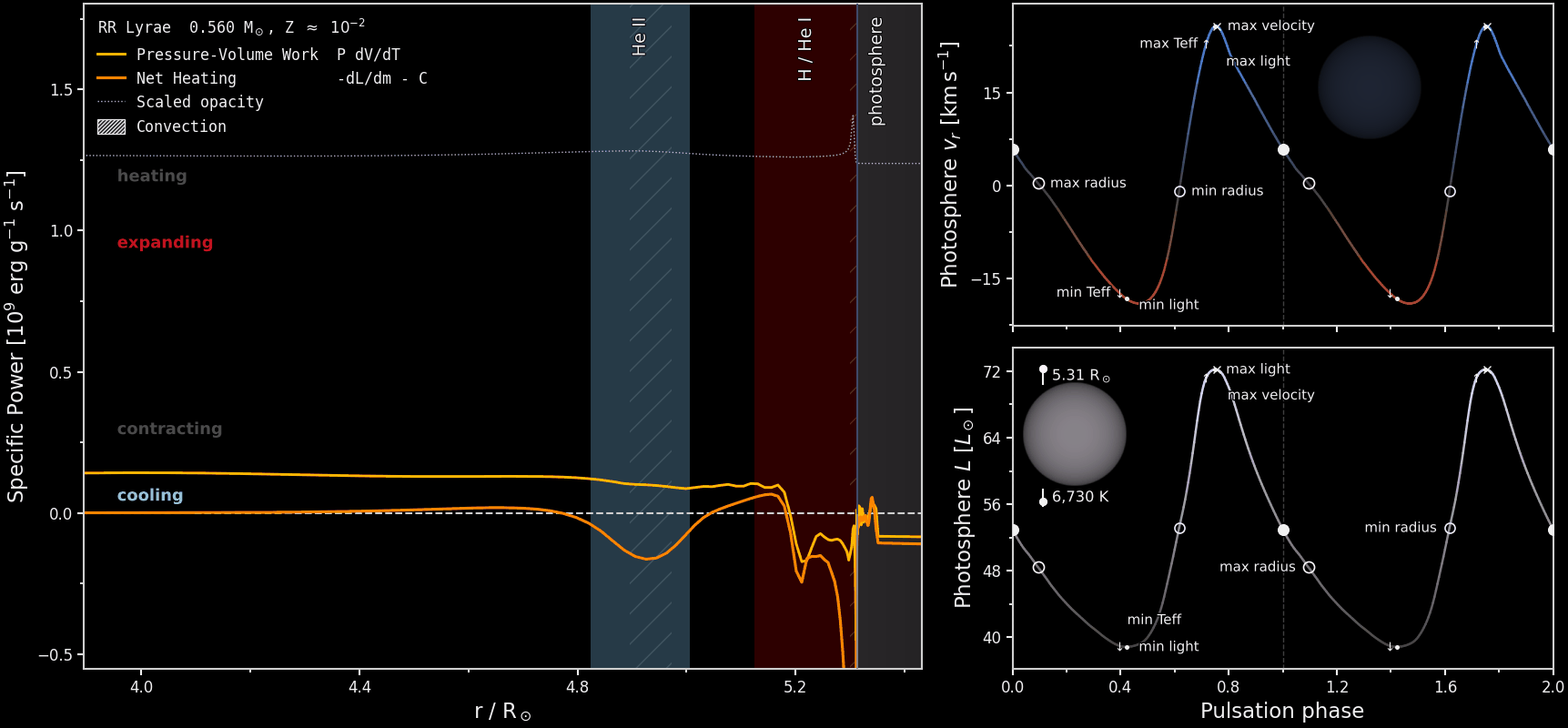

model_001 animation
Provisional fixed-cell Fourier depth diagnostic; will refresh after strict convergence (waiting on DeltaR)

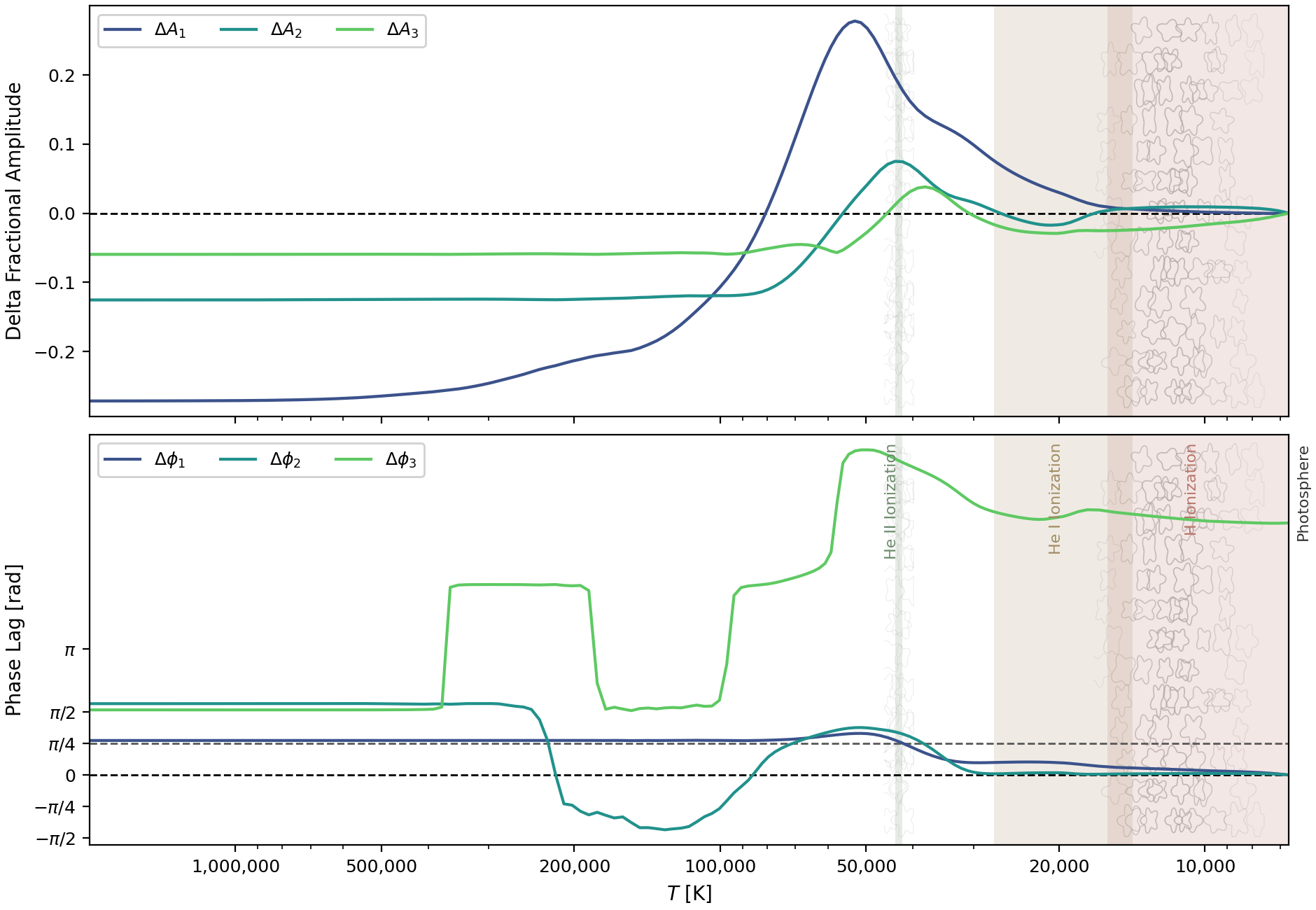

model_001 fixed-cell Fourier depth diagnostic
StellarM0.5602 M_sunTeff6824 KL51.51 L_sunX0.7026Z0.003592
Convectionalpha_MLT1.91alpha_m0.7073

3728 profiles | active period 2022 / 5000 | max v_surf/c_s 4.5 (supersonic) | 1246 steps/cycle | strict convergence pending | history_exact_rsp_columns | 116 cycles | gate window through period 2022.0 | waiting on DeltaR; forecast approaching; DeltaR 38x tol | quality flag: surface velocity supersonic | Gamma ptp 0.000539 | P frac 0.000274 | DeltaR frac 0.038 | window max v_surf/c_s 4.5 | diagnostic animation: strict limit-cycle convergence gate has not passed | 16.5 MB GIF

GIF PNG summary verify lightcurve Fourier CSV Fourier summary

model_002

model_002_M0p5753_Z0p00707_T6044

running: continue_saturation

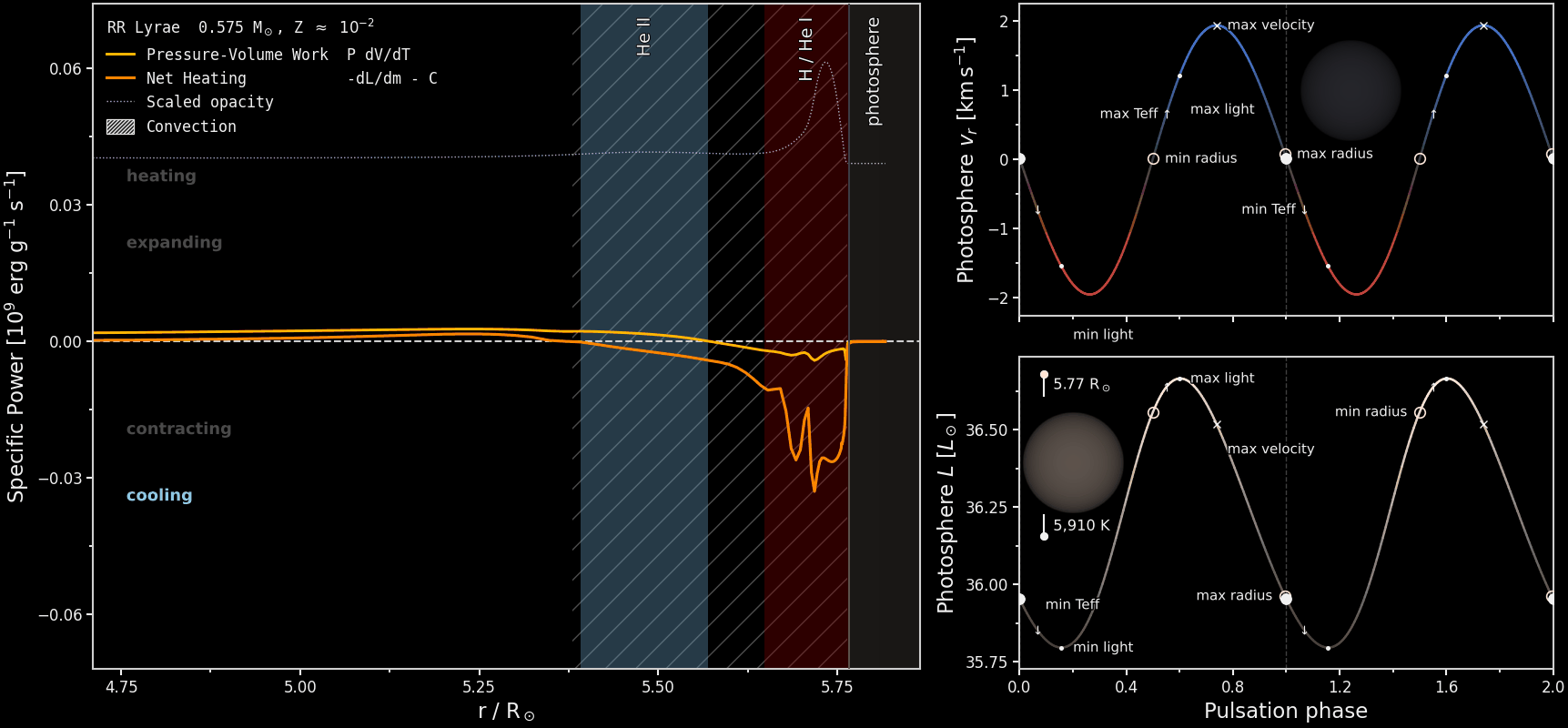

model_002 animation
Provisional fixed-cell Fourier depth diagnostic; will refresh after strict convergence (waiting on 100-cycle window/DeltaR)

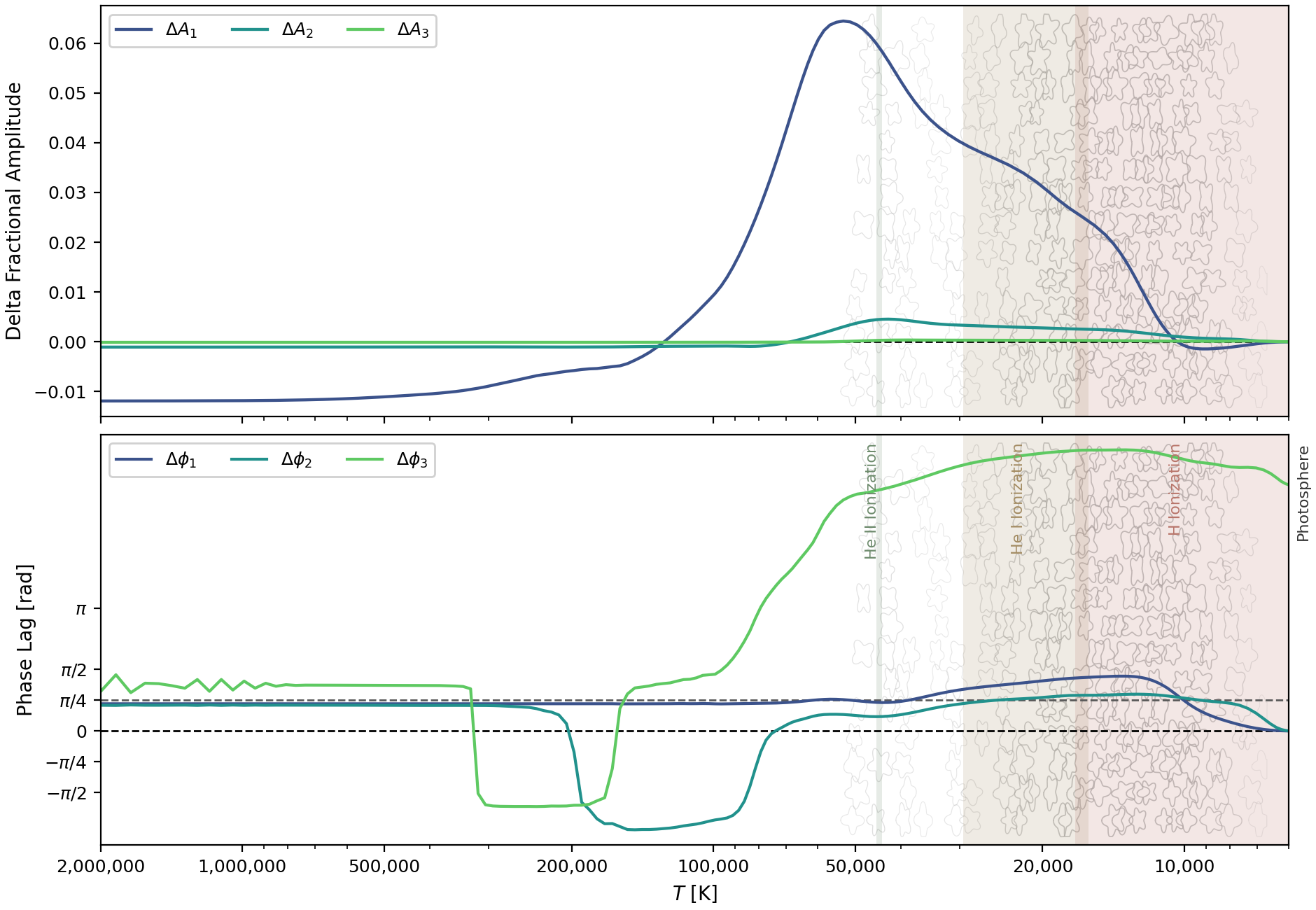

model_002 fixed-cell Fourier depth diagnostic
StellarM0.5753 M_sunTeff6044 KL36.22 L_sunX0.7289Z0.00707
Convectionalpha_MLT1.761alpha_m0.3076

3000 profiles | active period 2077 / 5000 | max v_surf/c_s 0.303 (ok) | 1000 steps/cycle | strict convergence pending | history_exact_rsp_columns | 80 cycles | gate window through period 2077.0 | waiting on 100-cycle window/DeltaR; DeltaR 88.3x tol | 80/100-cycle window | diagnostic animation: strict limit-cycle convergence gate has not passed | 15.7 MB GIF

GIF PNG summary verify lightcurve Fourier CSV Fourier summary

model_003

model_003_M0p7317_Z0p001405_T6745

verification failed

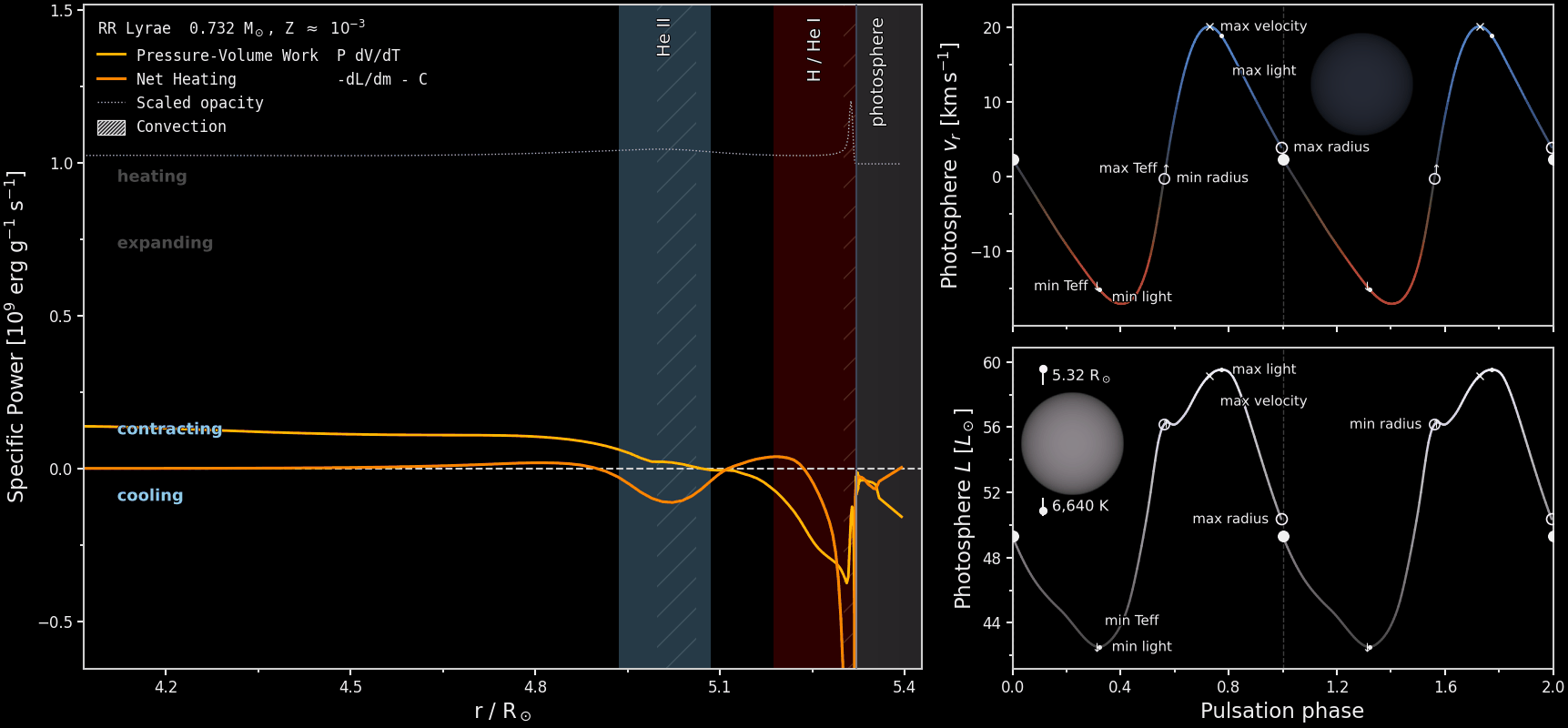

model_003 animation
Provisional fixed-cell Fourier depth diagnostic; will refresh after strict convergence (waiting on Gamma/P/DeltaR)

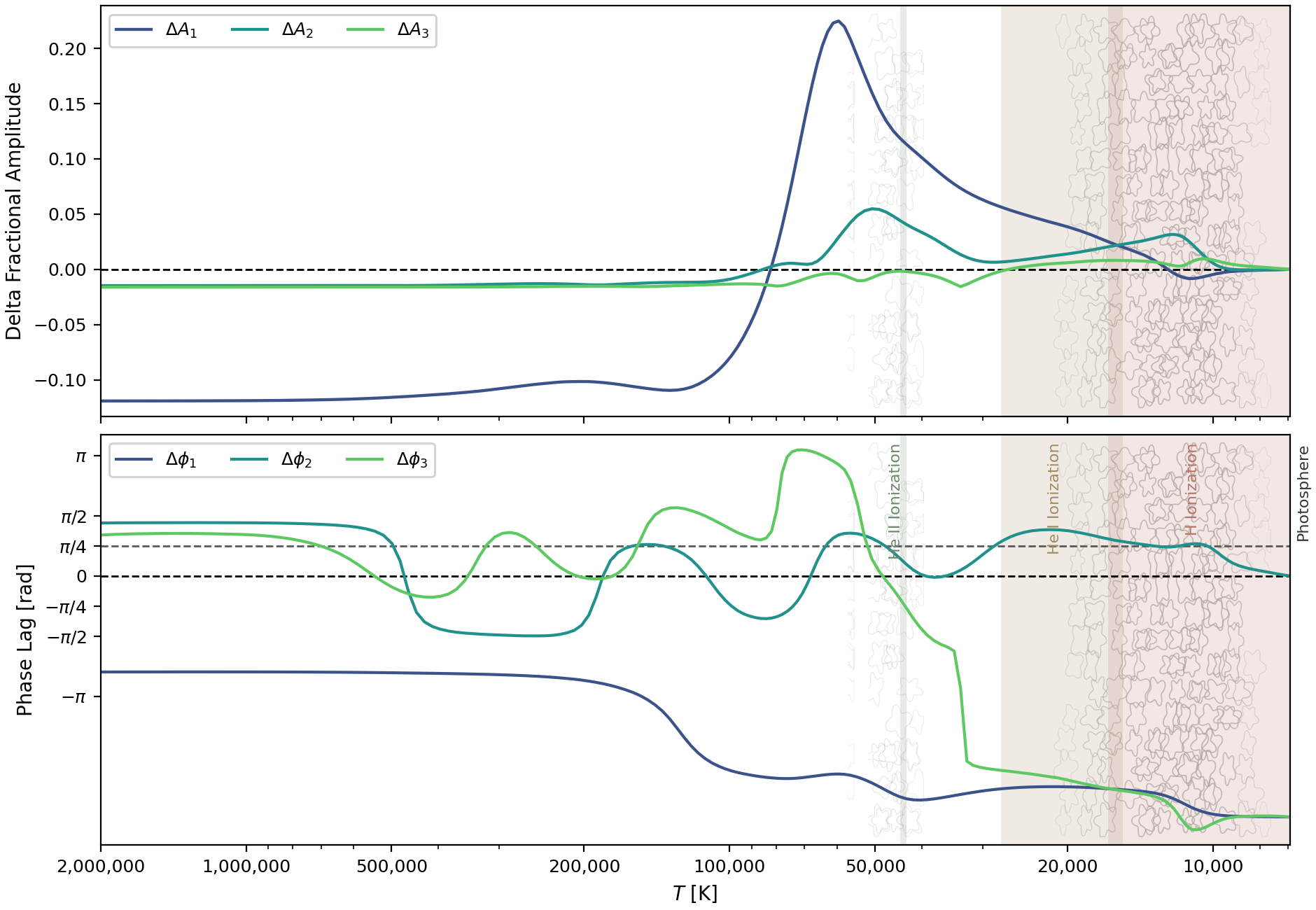

model_003 fixed-cell Fourier depth diagnostic
StellarM0.7317 M_sunTeff6745 KL50.21 L_sunX0.7349Z0.001405
Convectionalpha_MLT2.006alpha_m0.473

3004 profiles | max v_surf/c_s 2.52 (supersonic) | strict convergence pending | period_log_fallback | 2000 cycles | gate window through period 2000.0 | waiting on Gamma/P/DeltaR; forecast worsening; DeltaR 554x tol | quality flag: surface velocity supersonic | Gamma not recorded | P frac 0.12 | DeltaR frac 0.554 | window max v_surf/c_s 3.26 | cycle boundary not closed: L 5.2%, R 5.7%, Teff 4.2% | diagnostic animation: verification has not passed for the current animation | 15.5 MB GIF | luminosity_lsun phase seam is 0.05168 of amplitude, expected <= 0.025; radius_rsun phase seam is 0.05676 of amplitude, expected <= 0.025

GIF PNG summary verify lightcurve Fourier CSV Fourier summary

model_004

model_004_M0p7595_Z0p0001834_T6876

awaiting convergence

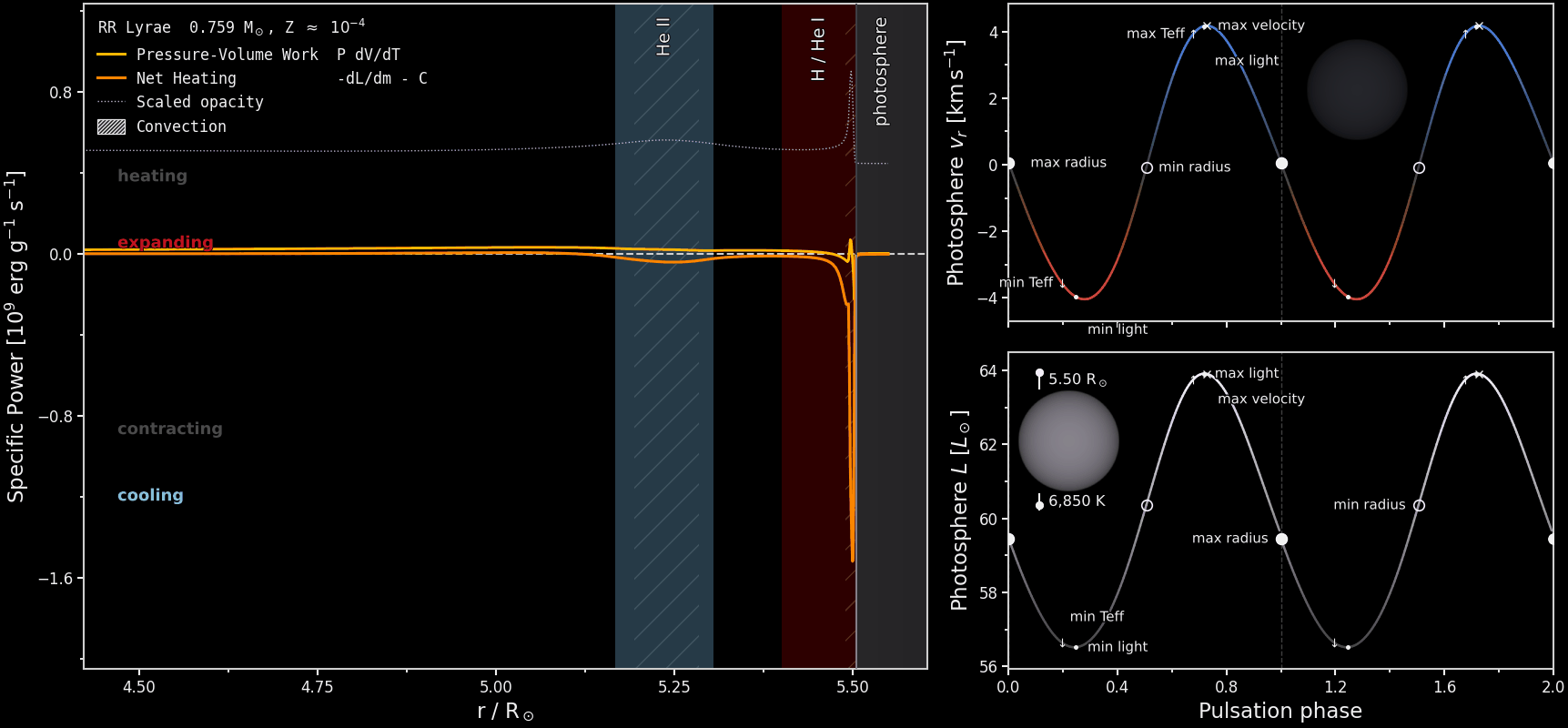

model_004 animation
Provisional fixed-cell Fourier depth diagnostic; will refresh after strict convergence (waiting on Gamma/P/DeltaR)

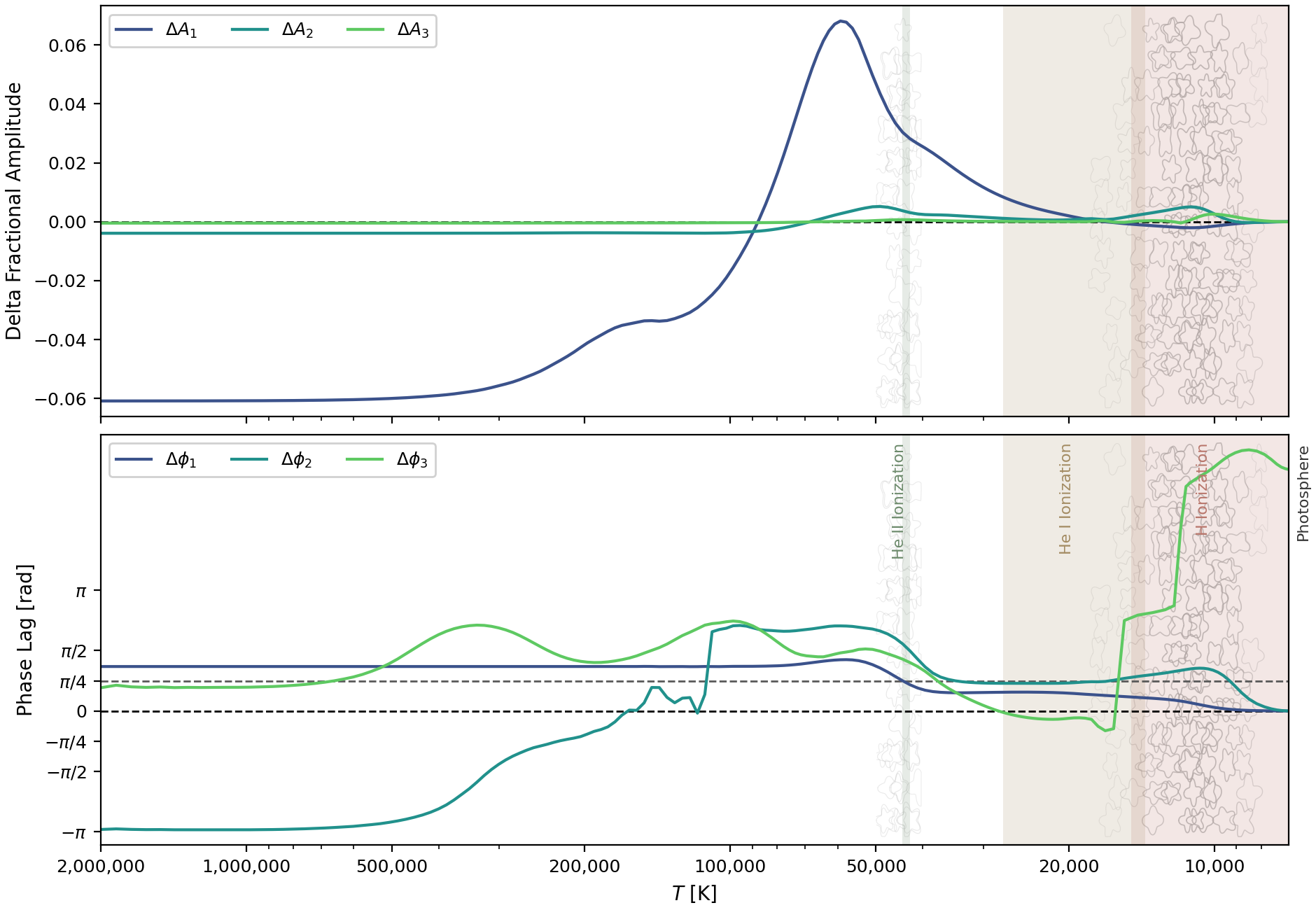

model_004 fixed-cell Fourier depth diagnostic
StellarM0.7595 M_sunTeff6876 KL60.04 L_sunX0.7074Z0.0001834
Convectionalpha_MLT1.873alpha_m0.7596

3008 profiles | max v_surf/c_s 0.631 (watch) | strict convergence pending | period_log_fallback | 2000 cycles | gate window through period 2000.0 | waiting on Gamma/P/DeltaR; forecast worsening; DeltaR 195x tol | quality flag: surface velocity watch | Gamma not recorded | P frac 0.0252 | DeltaR frac 0.195 | window max v_surf/c_s 0.631 | cycle boundary not closed: L 1.7%, R 1.8%, Teff 2% | diagnostic animation: strict limit-cycle convergence gate has not passed | 13.7 MB GIF

GIF PNG summary verify lightcurve Fourier CSV Fourier summary

model_005

model_005_M0p6238_Z0p00007156_T6925

verification failed

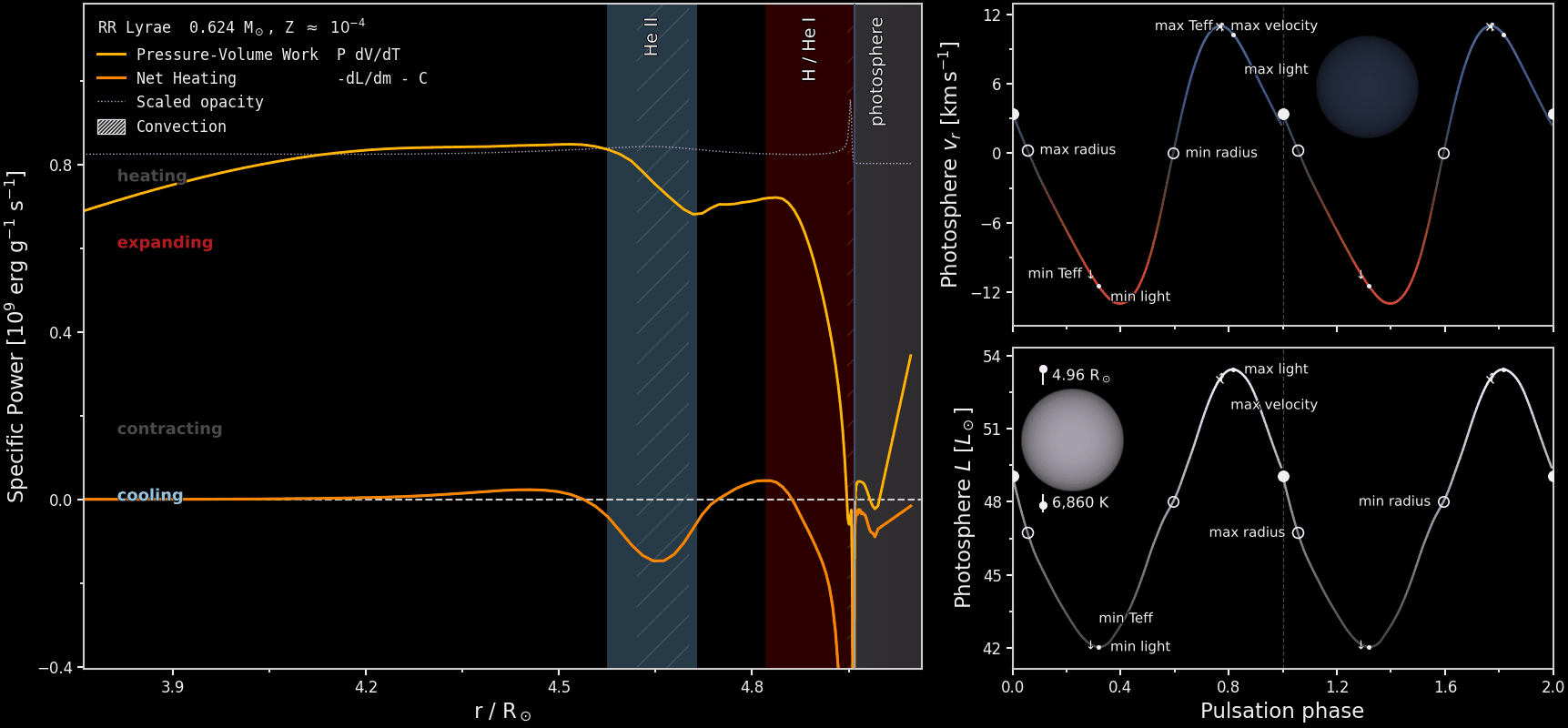

model_005 animation
Provisional fixed-cell Fourier depth diagnostic; will refresh after strict convergence (waiting on Gamma/P/DeltaR)

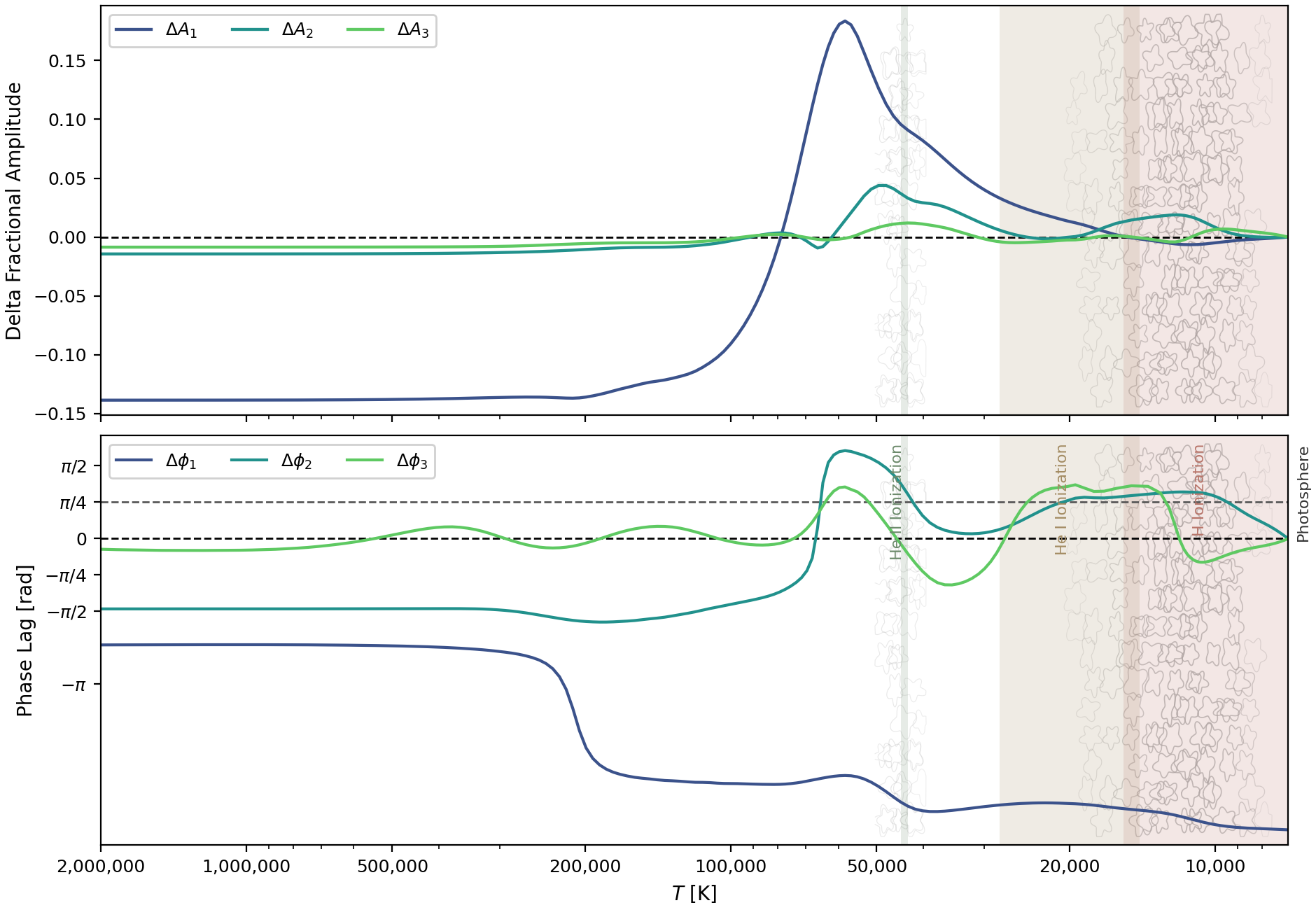

model_005 fixed-cell Fourier depth diagnostic
StellarM0.6238 M_sunTeff6925 KL48.84 L_sunX0.7126Z7.156e-05
Convectionalpha_MLT1.835alpha_m0.722

2995 profiles | max v_surf/c_s 2.58 (supersonic) | strict convergence pending | period_log_fallback | 2000 cycles | gate window through period 2000.0 | waiting on Gamma/P/DeltaR; forecast worsening; DeltaR 1.08e+03x tol | quality flag: surface velocity supersonic | Gamma not recorded | P frac 0.238 | DeltaR frac 1.08 | window max v_surf/c_s 3.02 | cycle boundary not closed: L 1.5%, R 32%, Teff 11% | diagnostic animation: verification has not passed for the current animation | 14.6 MB GIF | radius_rsun phase seam is 0.3245 of amplitude, expected <= 0.025; teff_k phase seam is 0.1056 of amplitude, expected <= 0.025

GIF PNG summary verify lightcurve Fourier CSV Fourier summary

model_006

model_006_M0p7194_Z0p001620_T6711

verification failed

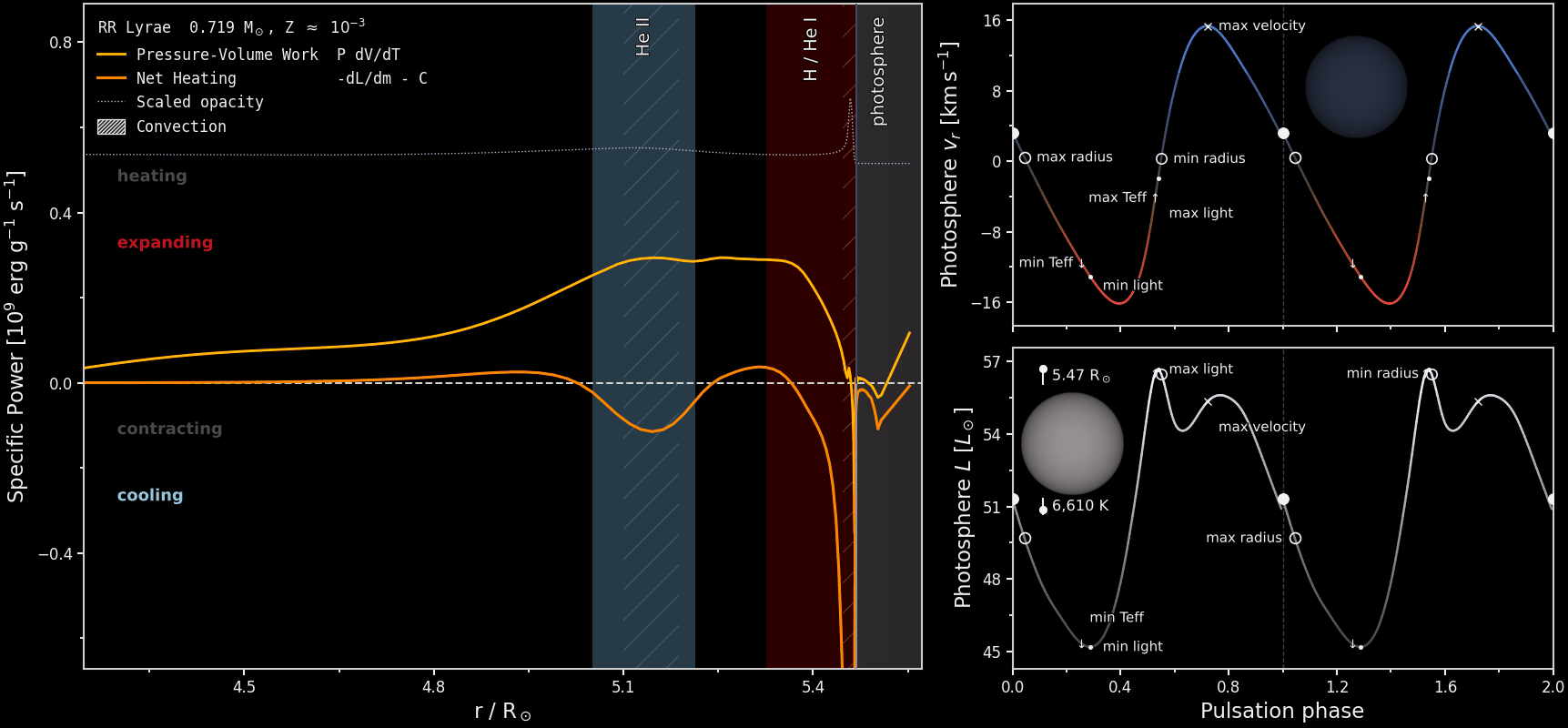

model_006 animation
Provisional fixed-cell Fourier depth diagnostic; will refresh after strict convergence (waiting on Gamma/P/DeltaR)

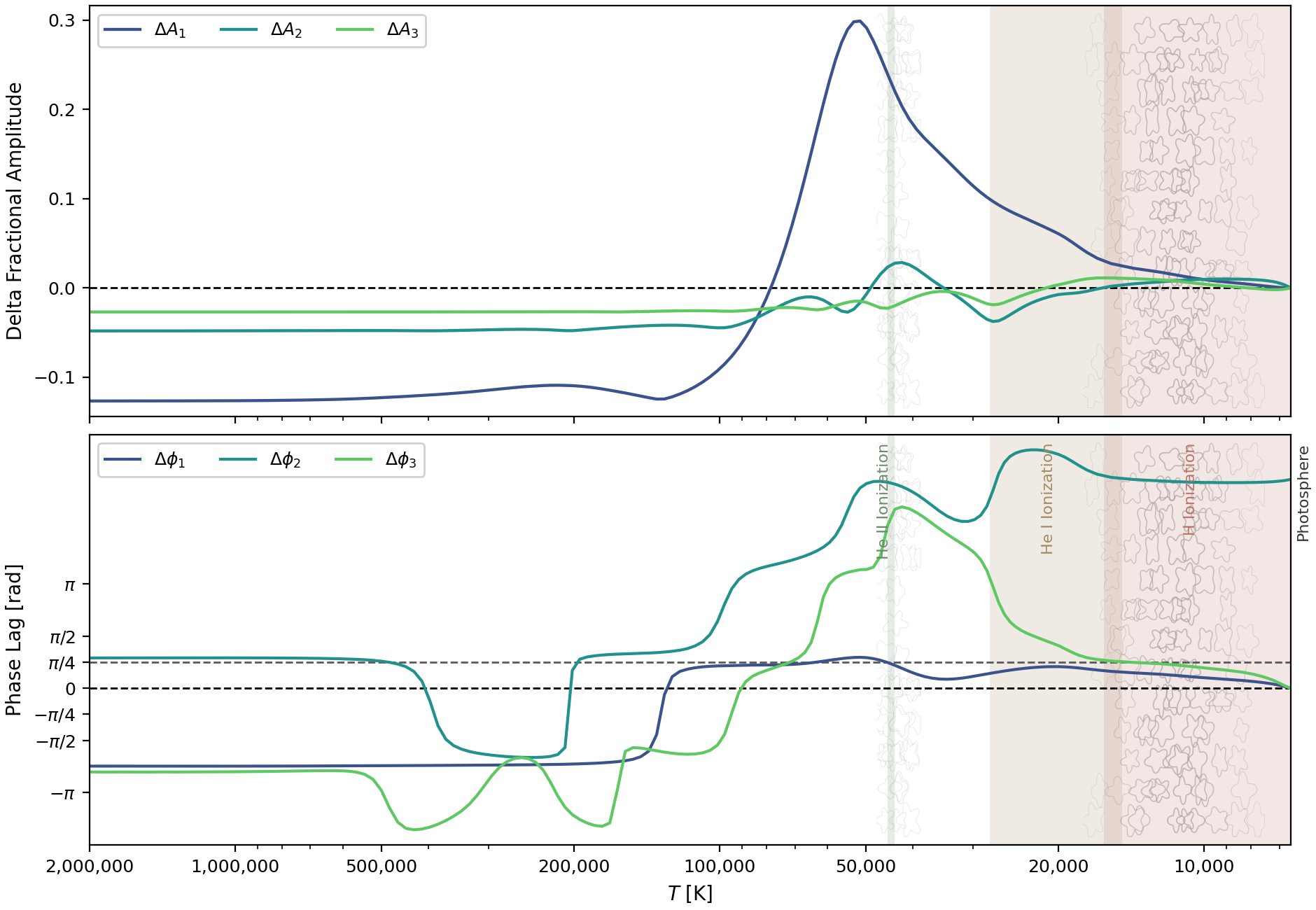

model_006 fixed-cell Fourier depth diagnostic
StellarM0.7194 M_sunTeff6711 KL51.9 L_sunX0.721Z0.00162
Convectionalpha_MLT2.078alpha_m0.2945

3097 profiles | max v_surf/c_s 3.36 (supersonic) | strict convergence pending | period_log_fallback | 2000 cycles | gate window through period 2000.0 | waiting on Gamma/P/DeltaR; forecast worsening; DeltaR 378x tol | quality flag: surface velocity supersonic | Gamma not recorded | P frac 0.0913 | DeltaR frac 0.378 | window max v_surf/c_s 3.65 | cycle boundary not closed: L 5.4%, R 8.5%, Teff 2.3% | diagnostic animation: verification has not passed for the current animation | 16.3 MB GIF | luminosity_lsun phase seam is 0.05396 of amplitude, expected <= 0.025; radius_rsun phase seam is 0.08457 of amplitude, expected <= 0.025

GIF PNG summary verify lightcurve Fourier CSV Fourier summary

model_007

model_007_M0p6887_Z0p004060_T6669

running: continue_saturation
queued
Fourier depth diagnostic pending: waiting for converged post-saturation deep profiles. Current gate is waiting on DeltaR.
StellarM0.6887 M_sunTeff6669 KL50.79 L_sunX0.7165Z0.00406
Convectionalpha_MLT1.829alpha_m0.7383

active period 1746 / 5000 | max v_surf/c_s 4.96 (supersonic) | 1343 steps/cycle | strict convergence pending | history_exact_rsp_columns | 1746 cycles | gate window through period 1746.0 | waiting on DeltaR; forecast approaching; DeltaR 15.9x tol | quality flag: surface velocity supersonic | Gamma ptp 0.000294 | P frac 0.000134 | DeltaR frac 0.0159 | window max v_surf/c_s 4.96

awaiting render

model_008

model_008_M0p6151_Z0p0004406_T6792

running: continue_saturation
queued
Fourier depth diagnostic pending: waiting for converged post-saturation deep profiles. Current gate is waiting on DeltaR.
StellarM0.6151 M_sunTeff6792 KL60.65 L_sunX0.7458Z0.0004406
Convectionalpha_MLT2.038alpha_m0.8968

active period 1199 / 5000 | max v_surf/c_s 0.558 (watch) | 1000 steps/cycle | strict convergence pending | history_exact_rsp_columns | 1199 cycles | gate window through period 1199.0 | waiting on DeltaR; forecast worsening; DeltaR 207x tol | quality flag: surface velocity watch | Gamma ptp 5.69e-05 | P frac 5.77e-06 | DeltaR frac 0.207 | window max v_surf/c_s 0.558

awaiting render

model_009

model_009_M0p6668_Z0p0001120_T6852

running: create
queued
Fourier depth diagnostic pending: waiting for converged post-saturation deep profiles. Current gate is waiting on Gamma/P/DeltaR.
StellarM0.6668 M_sunTeff6852 KL51.19 L_sunX0.7217Z0.000112
Convectionalpha_MLT2.181alpha_m0.4475

active period 328 / 600 | model 330820 | max v_surf/c_s 0.0349 (ok) | 976 steps/cycle | strict convergence pending | history_exact_rsp_columns | 328 cycles | gate window through period 328.0 | waiting on Gamma/P/DeltaR; forecast worsening; DeltaR 361x tol | Gamma ptp 0.00561 | P frac 0.063 | DeltaR frac 0.361 | window max v_surf/c_s 0.0356

awaiting render
